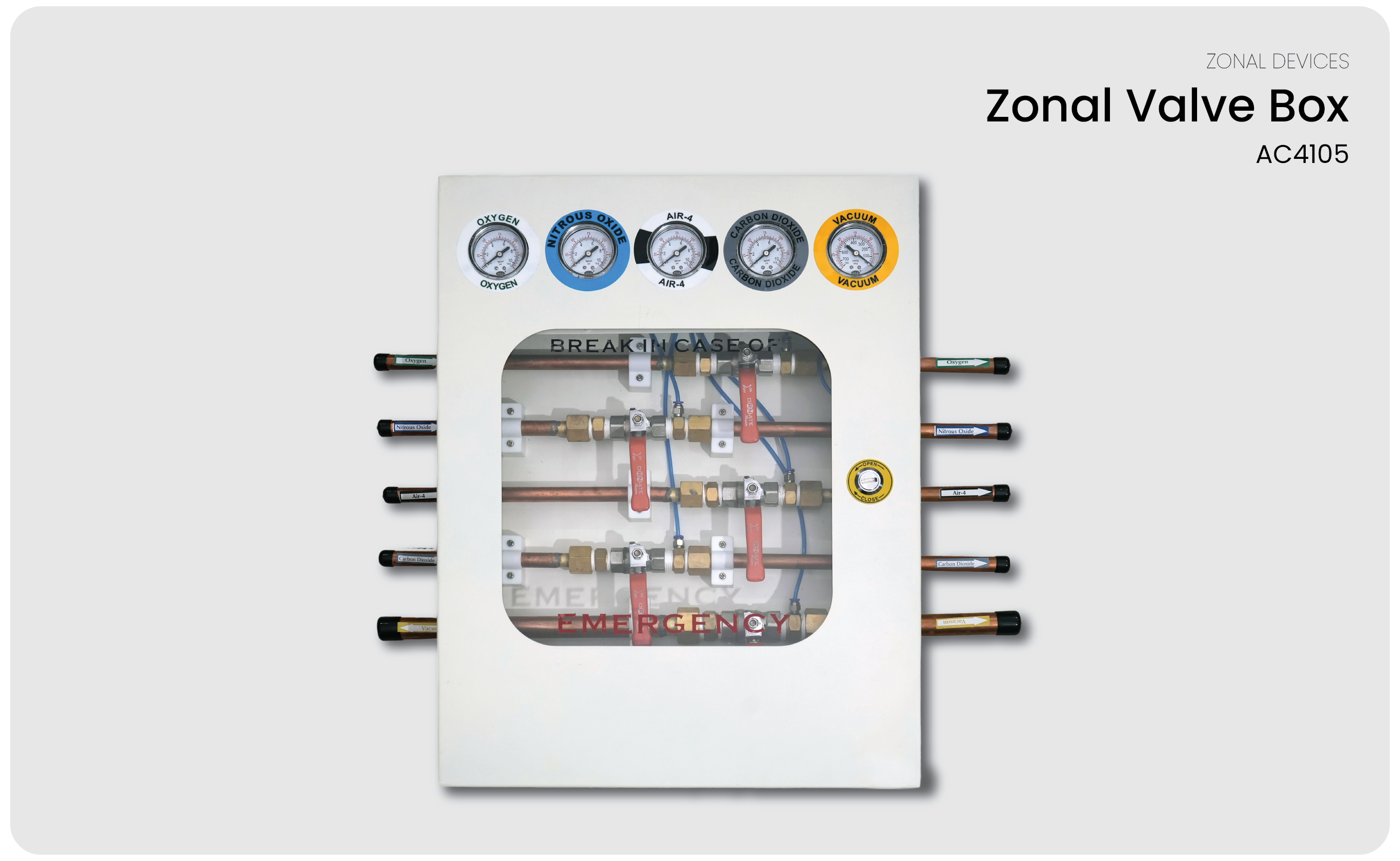

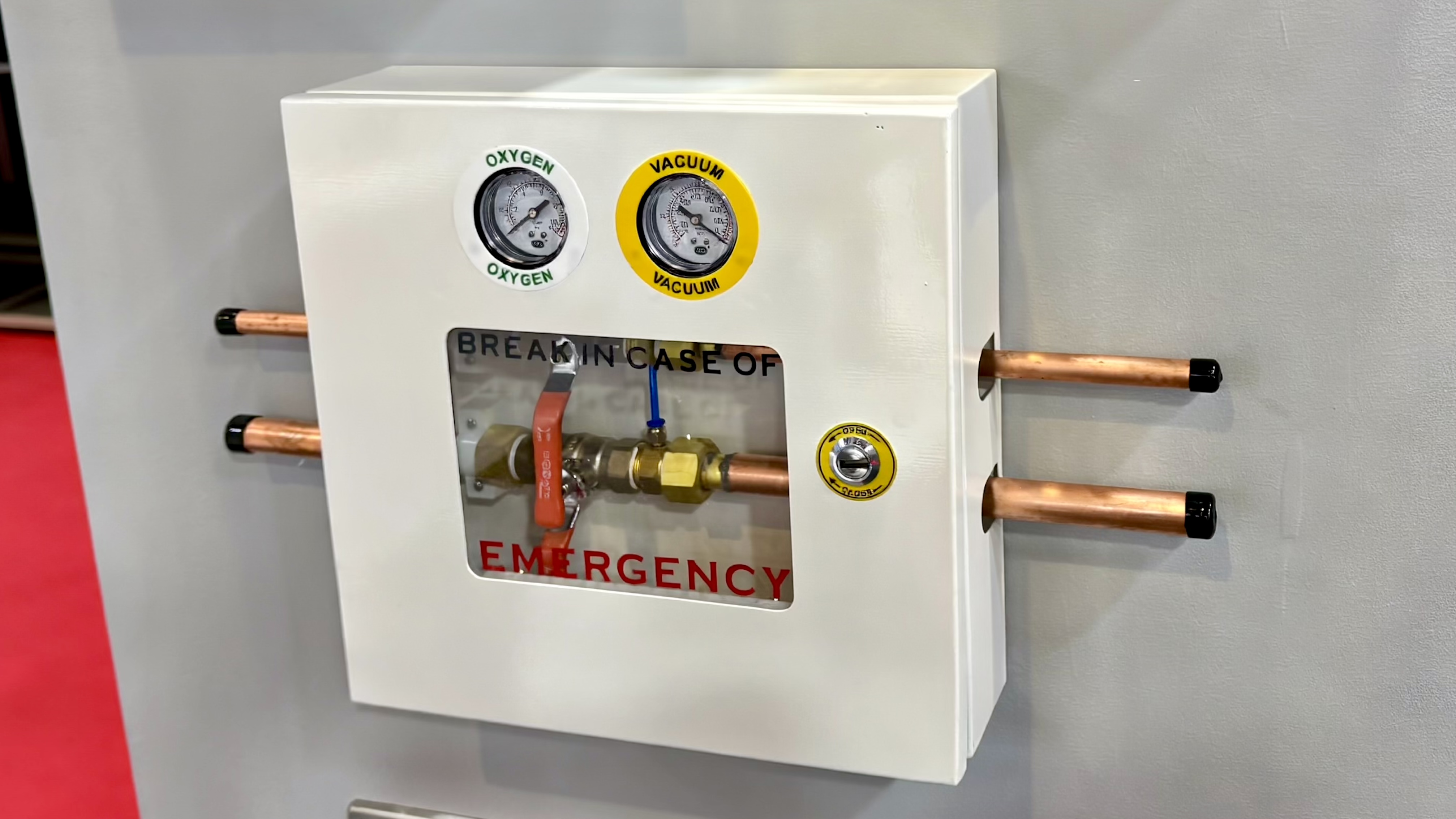

Zonal Valve Box

ZONAL DEVICES

The Zonal Valve Box is designed to allow targeted isolation of a gas distribution network within a healthcare facility. It allows maintenance work or emergency shut-off of medical gas supply for wards, operating theatres, or departments, without disrupting gas flow to the rest of the facility.

This targeted isolation is crucial for patient safety and system reliability, enabling prompt response during incidents and facilitating repairs or upgrades in one zone while keeping other zones operational.

The unit consists of full-bore ball valves to shutoff or restore the flow of gas in the pipeline to allow for immediate shutdowns in case of emergency, in accordance with ISO 7396-1.

  • Installed at the floors to intercept the areas of healthcare facilities according to the medical gas pipeline system design
  • Full bore valves allow maximum flow with minimal restriction, ensuring high flow rates in gas distribution systems.
  • Valves are securely enclosed in durable 18-gauge steel boxes, providing protection and safety for critical gas control systems.
  • A lockable frame with a transparent window ensures clear visibility while maintaining security in gas control systems.
Suitable Gases
  • Oxygen
  • Vacuum
  • Medical air
  • Surgical air
  • Nitrous oxide
  • Carbon dioxide

Available in two pipeline orientations for flexible installation in hospital settings.
  • Horizontal
  • Vertical


Product Codes
  Order Code
1 Gas
Oxygen		 AC 6101
2 GAS
Oxygen, Vacuum		 AC 6102
3 Gas
Oxygen Air, Vacuum		 AC 6103
4 Gas
Oxygen, Nitrous Oxide, Air, Vacuum		 AC 6104
5 Gas
Oxygen, Nitrous Oxide, Air, Air 800, Vacuum		 AC 6105
6 Gas
Oxygen, Nitrous Oxide, Carbon Dioxide, Air, Air 800, Vacuum		 AC 6106
Nominal Pressure
  • 4-5 bar (400 - 500 kPa)
    [O2, Air400, N2O, CO2]
  • 7-10 bar (700 - 1000 kPa)
    [Air800]
  • below -0.4 bar (-100 - -40 kPa)
    [Vac]

Max Inlet Pressure
  • 10 bar (1000 kPa)
    [O2, Air400, N2O, CO2]
  • 20 bar (2000 kPa)
    [Air800]
  • 54 bar (500 kPa)
    [Vac]

Storage Temperature
  • -20ºC to 60ºC

Inlet/Outlet Connection
  • Brazing to pipeline

    ⌀15mm
    [O2, Air400, Air800, N2O, CO2]

    ⌀22mm
    [Vac]

Pressure Gauge Connection
  • 1/8" BSP threaded connection

Box Material
  • Powder coated galvanised steel

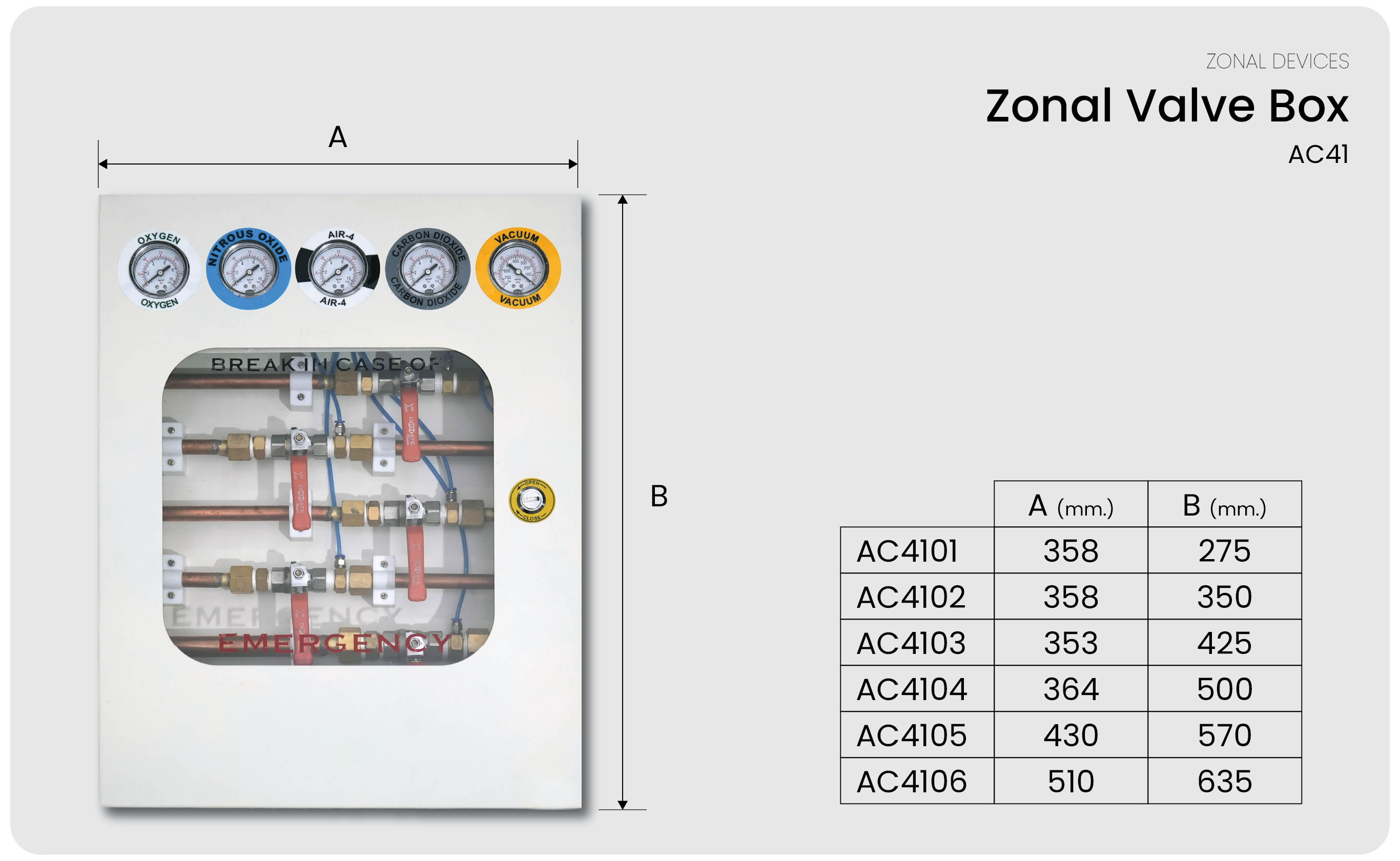

Zonal Valve Box dimensions
Zonal Valve Boxes are designed and manufactured in line with the requirements of
  • ISO 7396-1:2016
  • HTM 02-01



See Certificates
