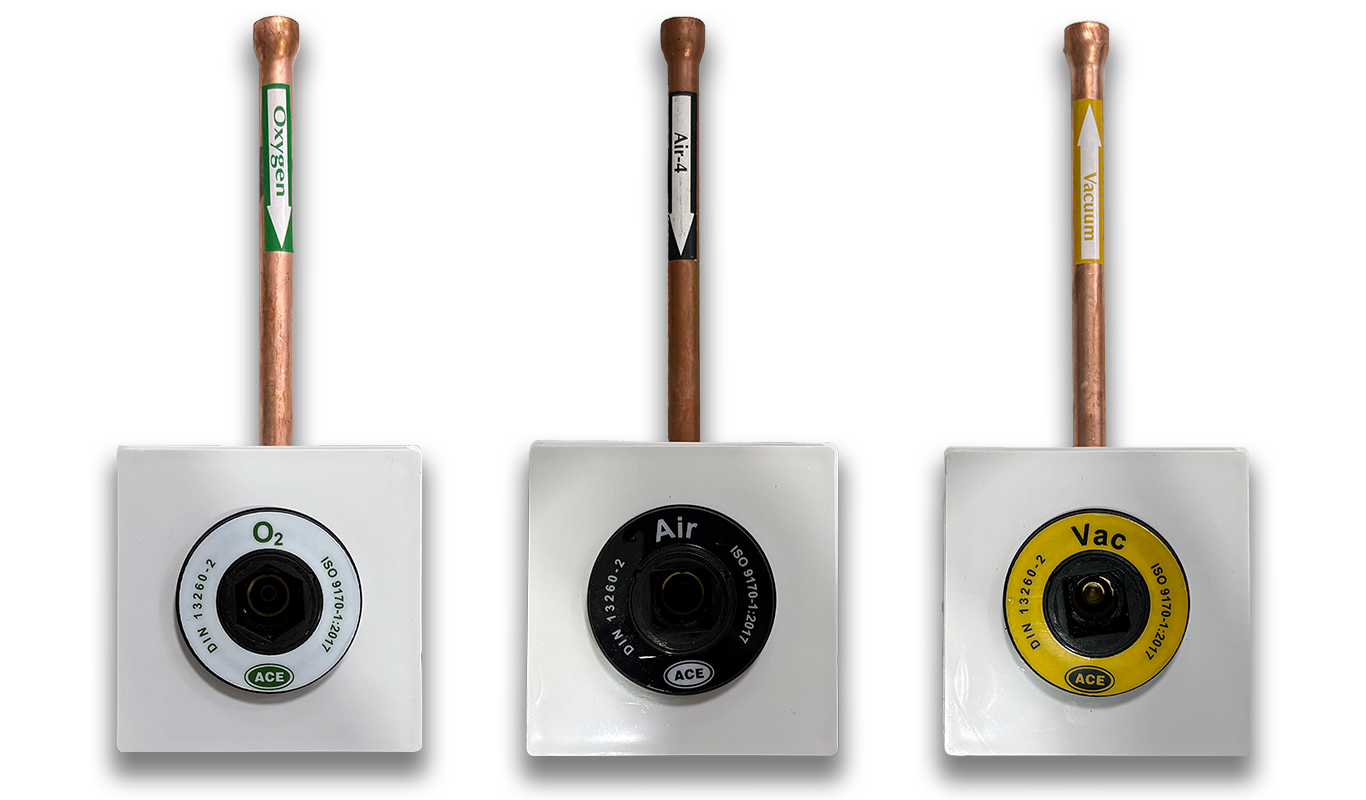

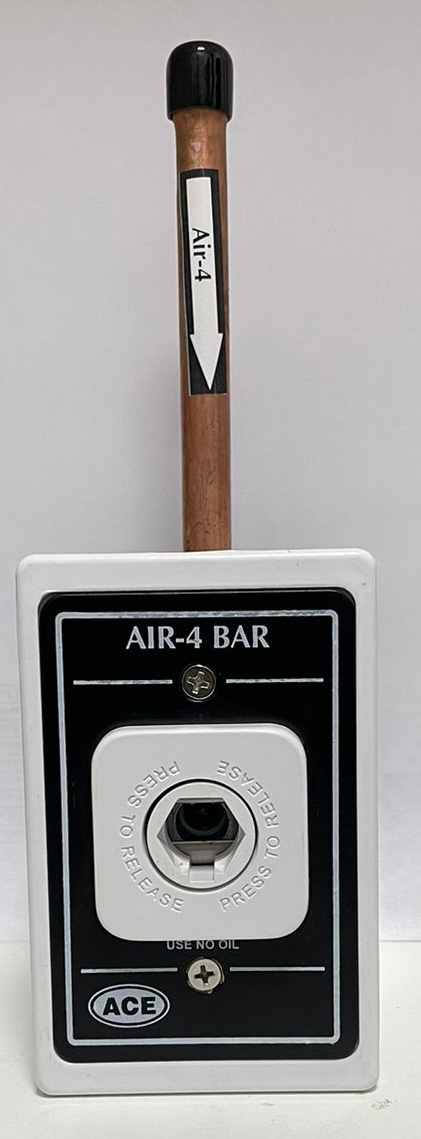

DIN Standard Outlet

MEDICAL GAS OUTLETS
DIN Standard Gas Outlets



Designed to meet the demanding needs of today’s healthcare environments and ensure long-lasting performance and safety in medical gas delivery for hospitals, clinics, and medical universities.

Each gas outlet undergoes comprehensive testing and is clearly marked and colour-coded for easy identification, allowing quick access during critical moments. To deliver gas to a medical device and prevent cross-connections between devices using different gases, gas supply is enabled through non-interchangeable probes with geometric indexing, as recommended in DIN 13260-2, and a double-locking probe.

Compliant with DIN 13260-2, ISO 9170-1:2016.

<  Previous - Parkodex Fusion  |

|  Next - British Standard (Plastic)  >

  • Secure Connection To guarantee uninterrupted patient care, connections are hermetically sealed to prevent leaks.
  • Easy to Identify ISO-32 colour-coded for quick identification and marked as per ISO 7396-1:2016 for zero mix-ups.
  • Non-interchangeable Connections Smooth, simple action for reliable gas connections with geometrically indexed probes as specified in DIN 13260-2.
  • Ease of Installation Flared end pipes or hose connections for easy installation and secure connections to the pipeline.
  • Choice of Materials For durability and contamination-free use, specific corrosion-resistant materials suitable for use with medical gases are used in the making of all our gas devices.
  • Pin-indexed Components Each component has gas-specific connections, so there is no chance of cross-connections during routine use or maintenance.

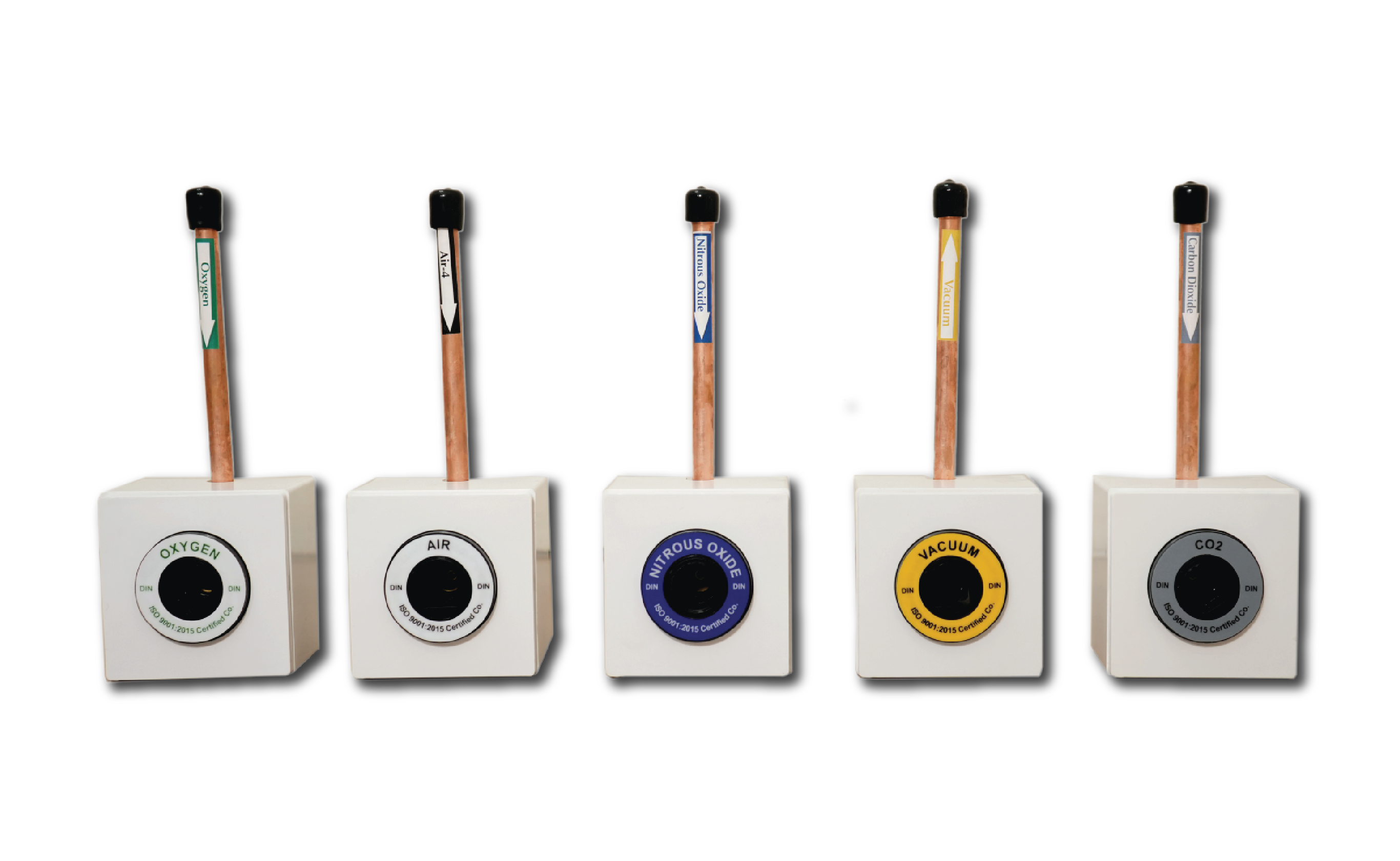

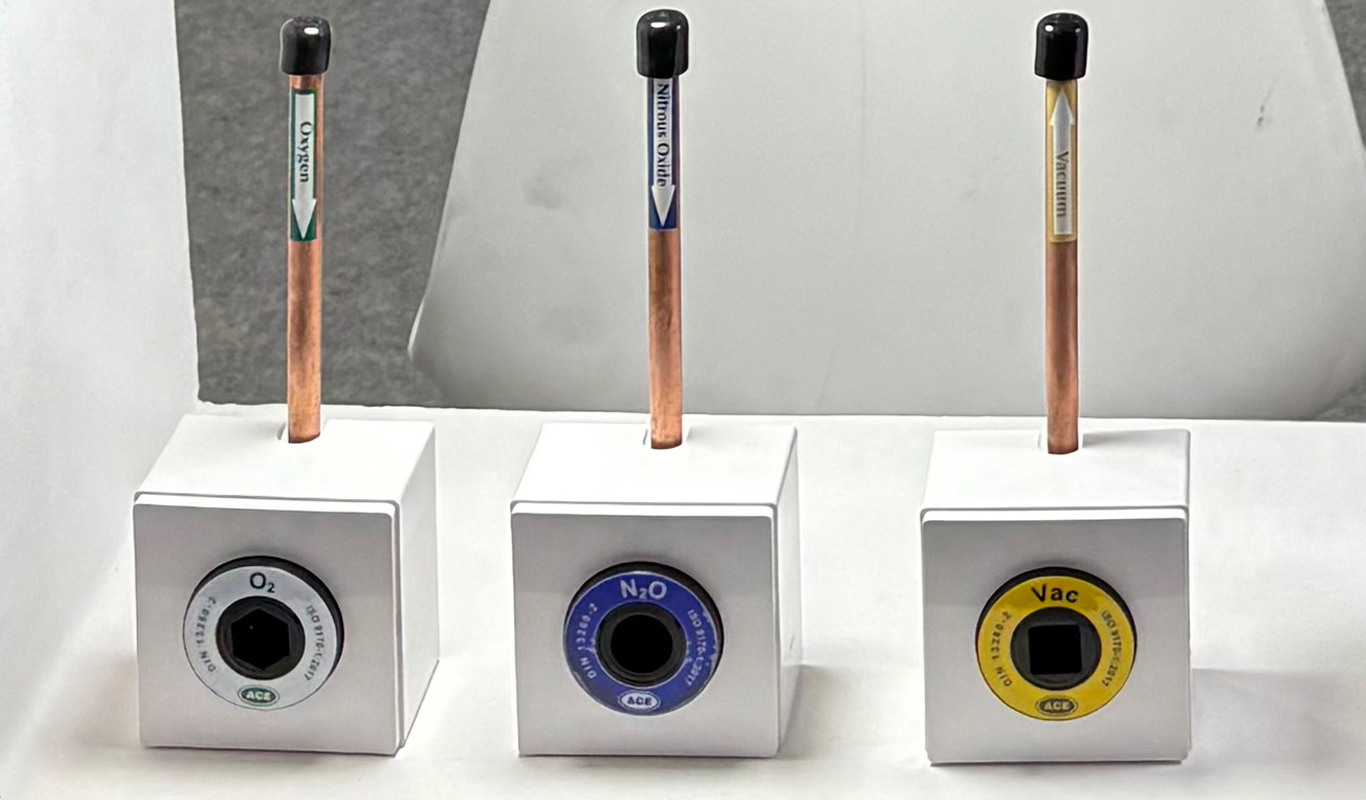

DIN Standard medical gas outlets are suitable for the supply of

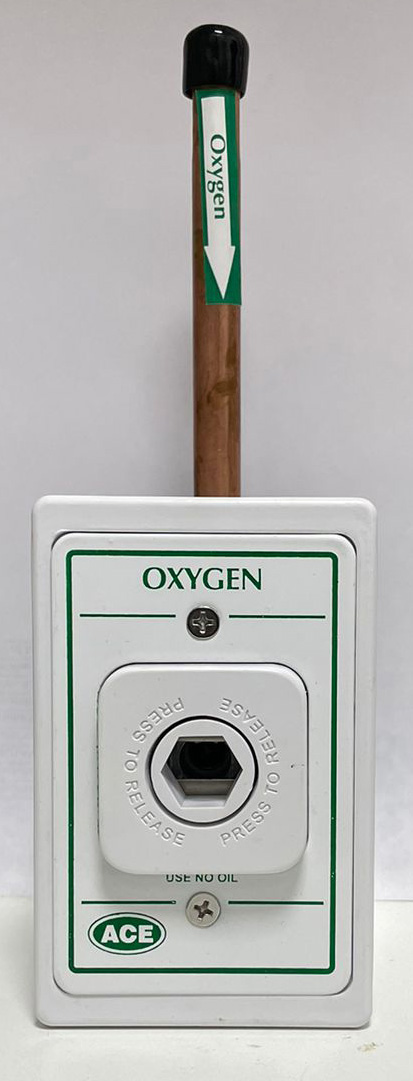

  • Oxygen [O2]

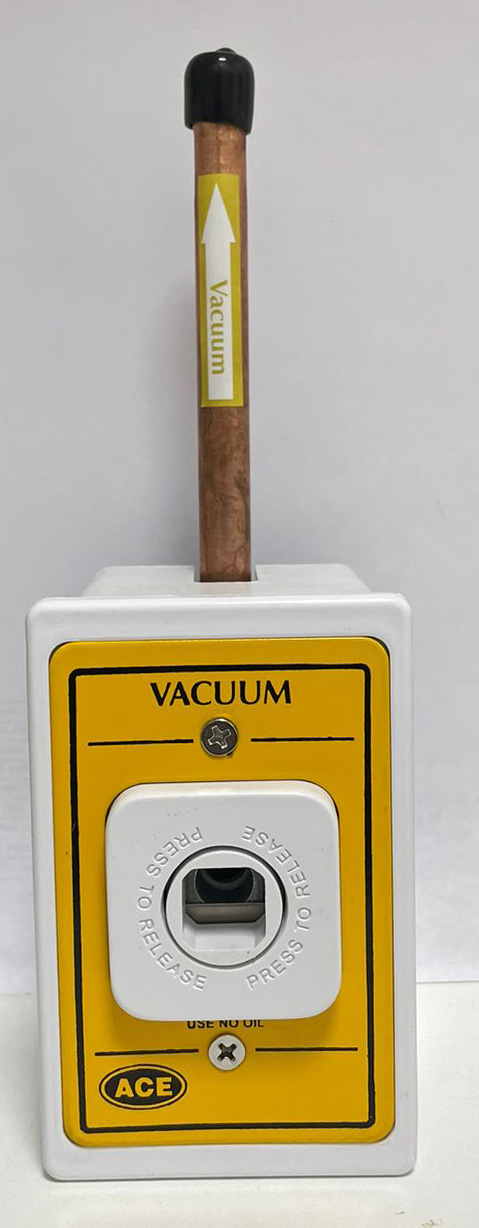

  • Vacuum [Vac]
  • Medical Air [Air-400]
  • Surgical Air [Air-800]

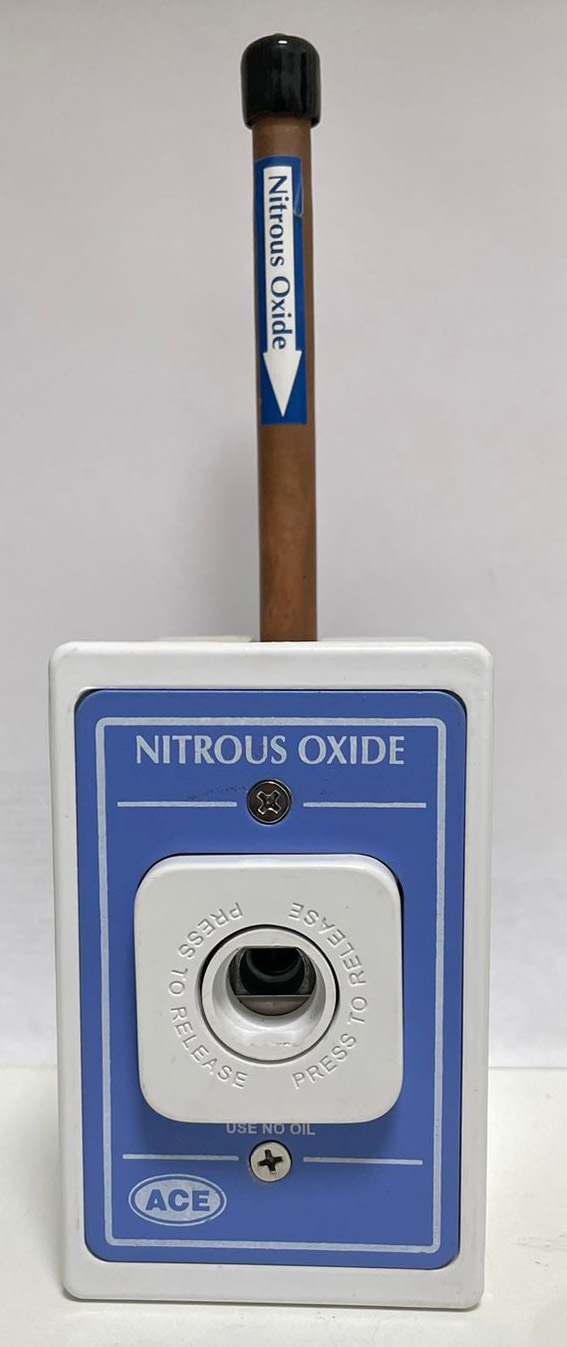

  • Nitrous Oxide [N2O]

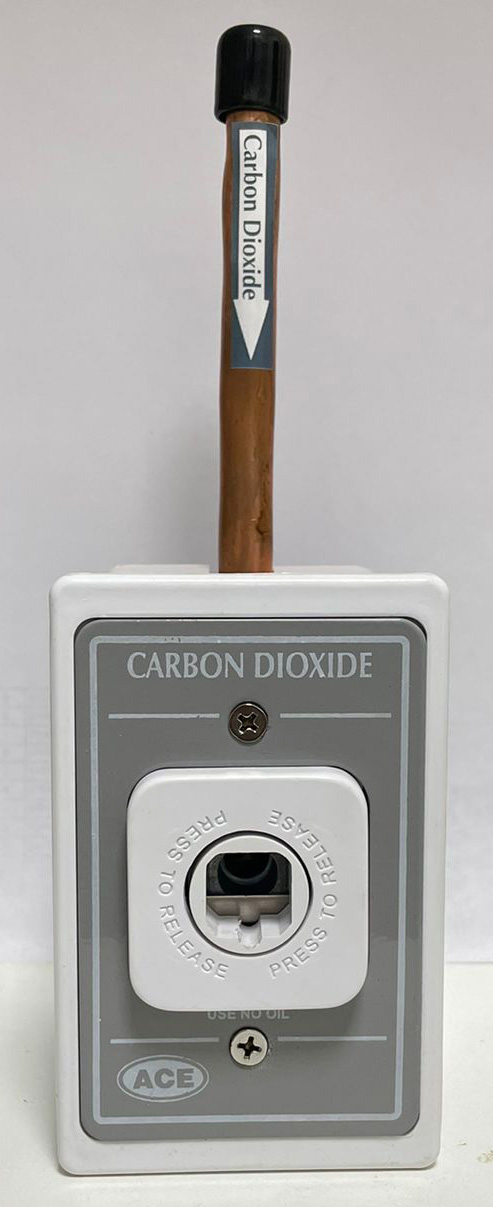

  • Carbon Dioxide [CO2]



Gas outlets are available in three mounting options for flexible installation in hospital settings.

  • Wall-mounted
  • Bed Head Panel
  • OT and ICU Pendants


Product Codes
  Wall-mounted Panel-mounted Pendant-mounted
Qxygen AC 1411 AC 1412 AC 1413
Vacuum AC 1421 AC 1422 AC 1423
Air-4 AC 1431 AC 1432 AC 1433

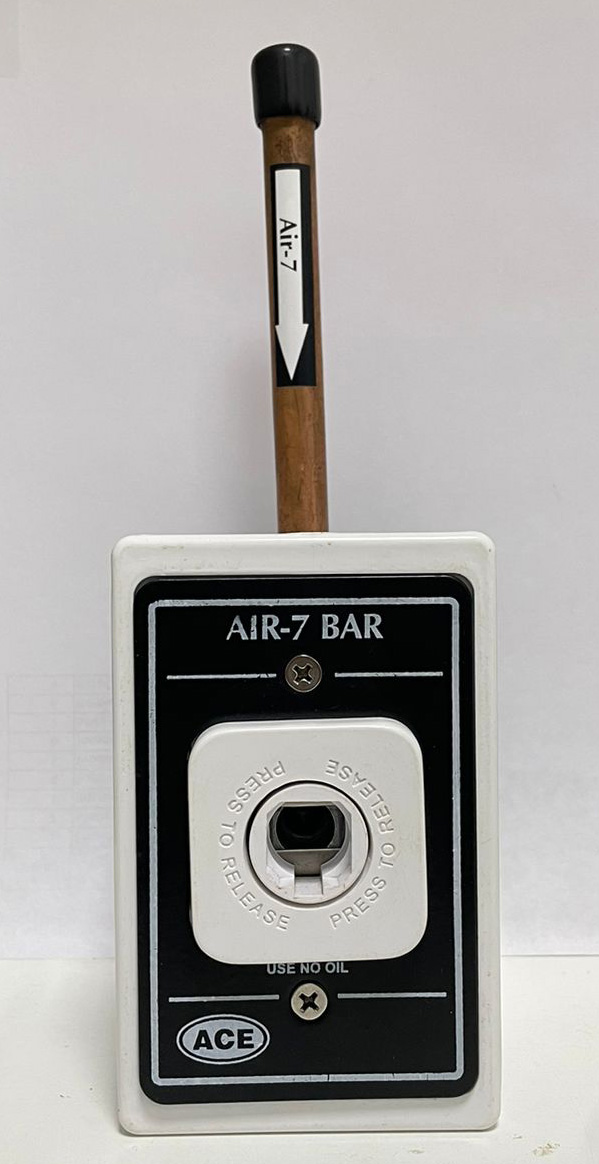

Air-7 AC 1441 AC 1442 AC 1443
Nitrous Oxide AC 1451 AC 1452 AC 1453
Carbon Dioxide AC 1461 AC 1462 AC 1463
Working Pressure
  • 4-5 bar (400-500 kPa)
    [O2, Air-400, Air-800, N2O, CO2]
  • below -0.4 bar (-40 kPa)
    [Vac]

Max Inlet Pressure
  • 10 bar (1000 kPa)
    [O2, Air-400, Air-800, N2O, CO2]
  •  5 bar (500 kPa)
    [Vac]

Storage Temperature
  • -20ºC to 60ºC

Available base block
  • with a flared coupler for brazing
  • with hose connection

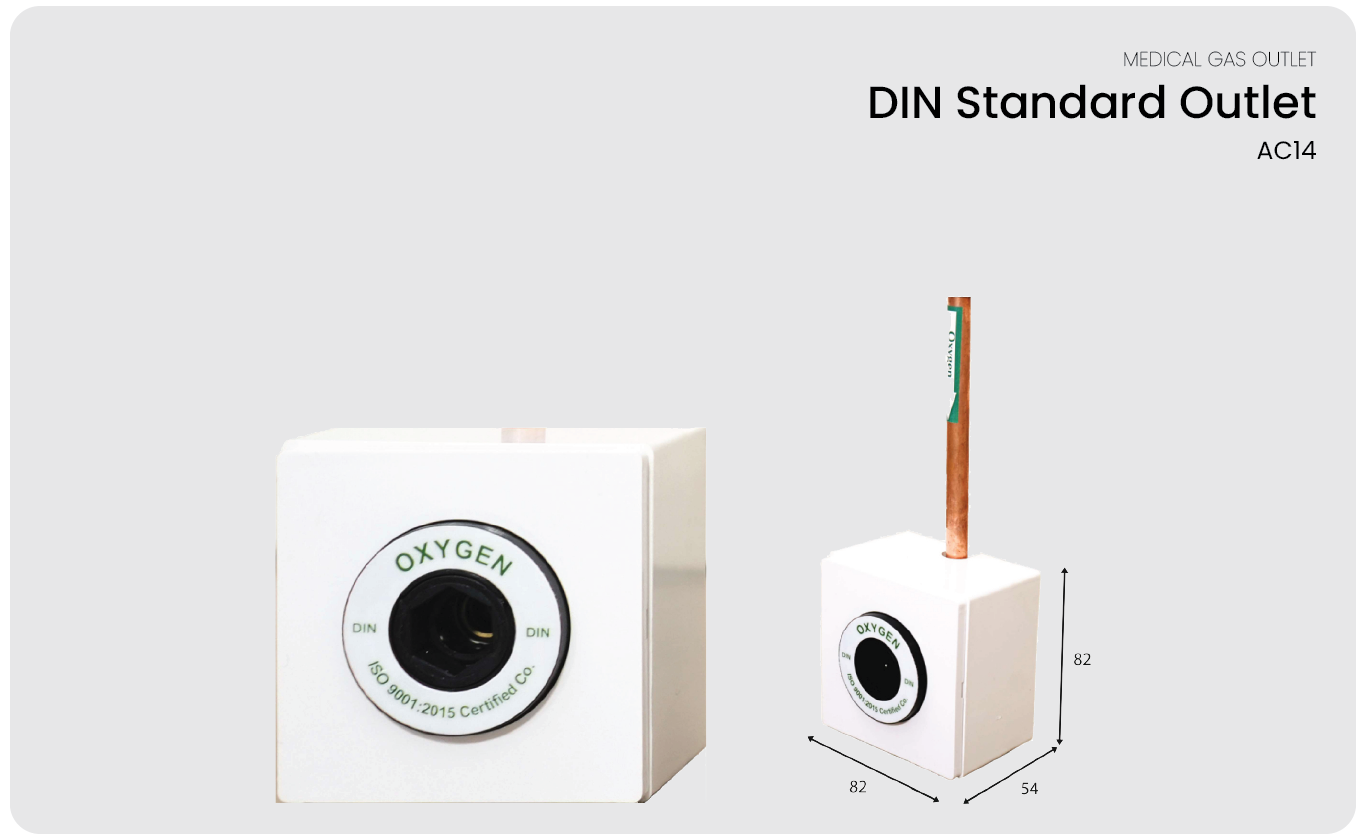

DIN Standard Outlet dimensions
DIN Standard medical gas outlets are designed and manufactured in line with the requirements of
  • ISO 9170-1:2016 / IS 17812-1:2022
  • ISO 7396-1:2016
  • HTM 02-01

The outlet-to-device interface has geometric indexing of probes as per
  • DIN 13260-2

The product is registered with the Central Drugs Standard Control Organization (CDSCO) under Reference Number:
  • AirCa-Gurga-HR/M/MD/017755
