Parkodex Fusion

MEDICAL GAS OUTLETS
Parkodex Fusion Gas Outlets



Designed to meet the demanding needs of today’s healthcare environments and ensure long-lasting performance and safety in medical gas delivery for hospitals, clinics, and medical universities.

Each gas outlet undergoes comprehensive testing and is clearly marked and colour-coded for easy identification, allowing quick access during critical moments. To deliver gas to a medical device and prevent cross-connections between devices using different gases, gas supply is enabled through non-interchangeable probes with pin indexing and a parking facility.

Compliant with ISO 9170-1:2016 and IS 17812-1:2022

<  Previous - British Standard Outlet  |

|  Next - DIN Standard Outlet  >

  • Secure Connection To guarantee uninterrupted patient care, connections are hermetically sealed to prevent leaks.
  • Easy to Identify ISO-32 colour-coded for quick identification and marked as per ISO 7396-1:2016 for zero mix-ups.
  • Non-interchangeable Connections Smooth, simple action for reliable gas connections with pin-indexed probes.
  • Ease of Installation Flared end pipes or hose connections for easy installation and secure connections to the pipeline.
  • Choice of Materials For durability and contamination-free use, specific corrosion-resistant materials suitable for use with medical gases are used in the making of all our gas devices.
  • Pin-indexed Components Each component has gas-specific connections, so there is no chance of cross-connections during routine use or maintenance.

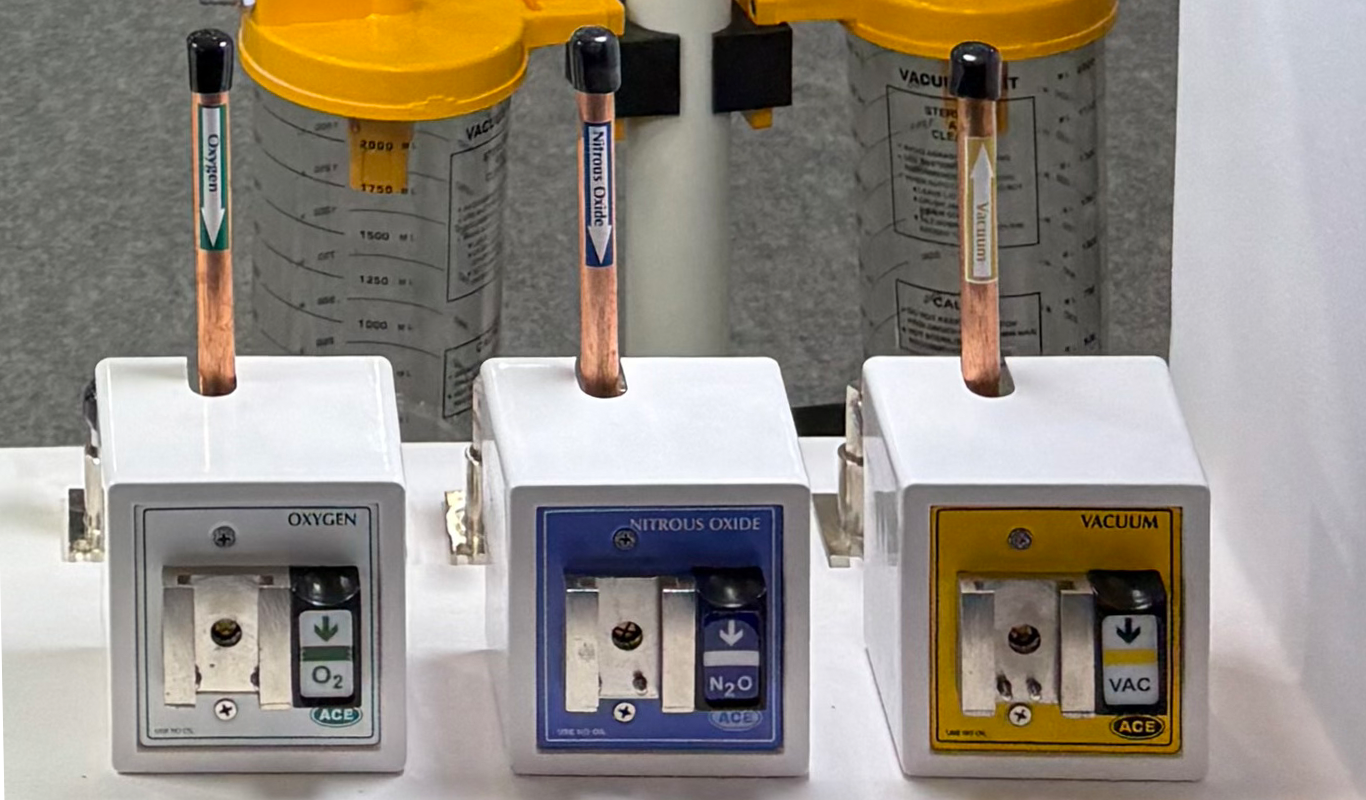

Parkodex Fusion medical gas outlets are suitable for the supply of

  • Oxygen [O2]
  • Vacuum [Vac]
  • Medical Air [Air-400]
  • Surgical Air [Air-800]
  • Nitrous Oxide [N2O]
  • Carbon Dioxide [CO2]



Gas outlets are available in three mounting options for flexible installation in hospital settings.

  • Wall-mounted
  • Bed Head Panel
  • OT and ICU Pendants


Product Codes
  Wall-mounted Panel-mounted Pendant-mounted

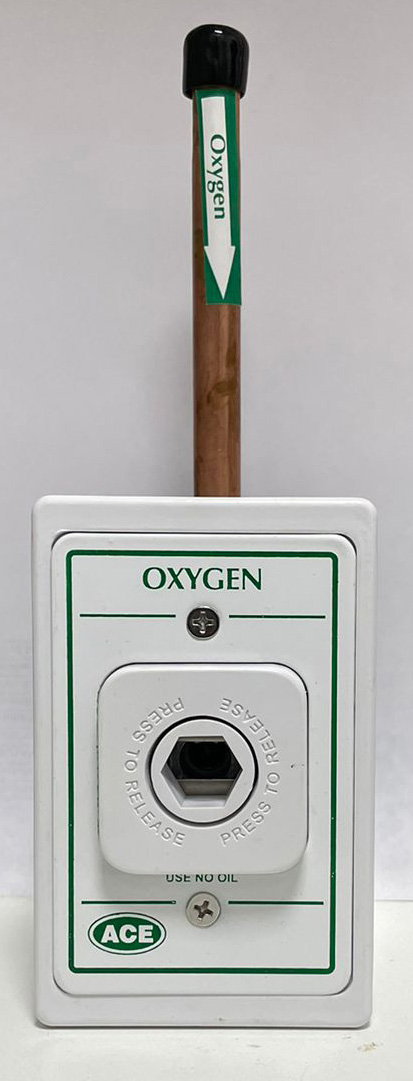

Qxygen AC 1311 AC 1312 AC 1313

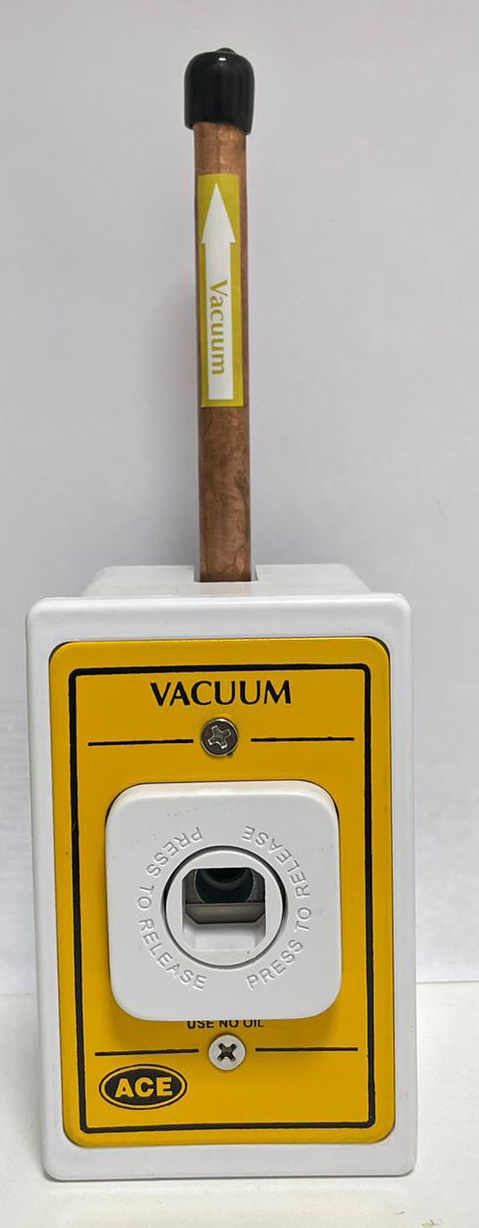

Vacuum AC 1321 AC 1322 AC 1323

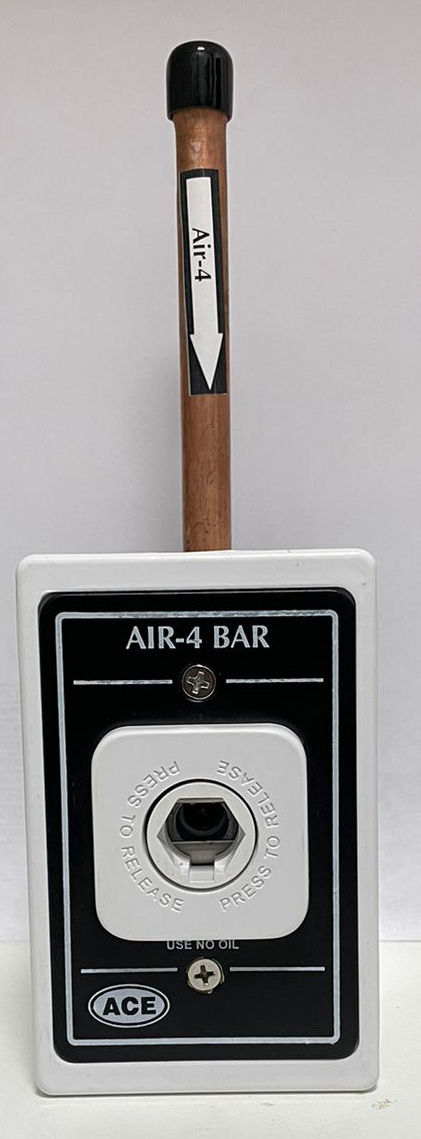

Air-4 AC 1331 AC 1332 AC 1333

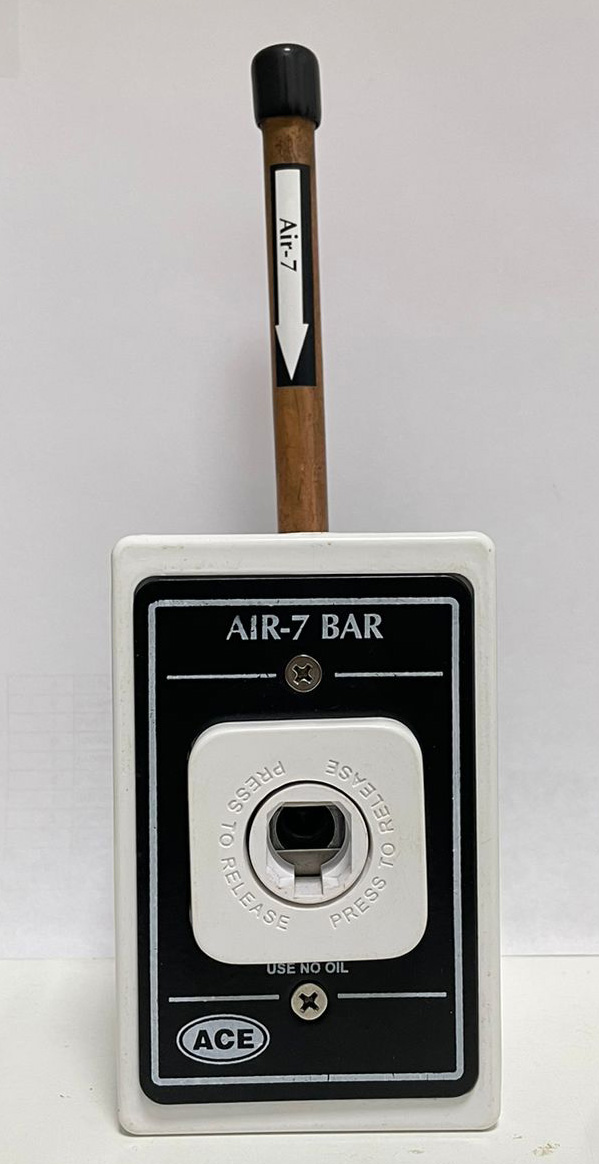

Air-7 AC 1341 AC 1342 AC 1343

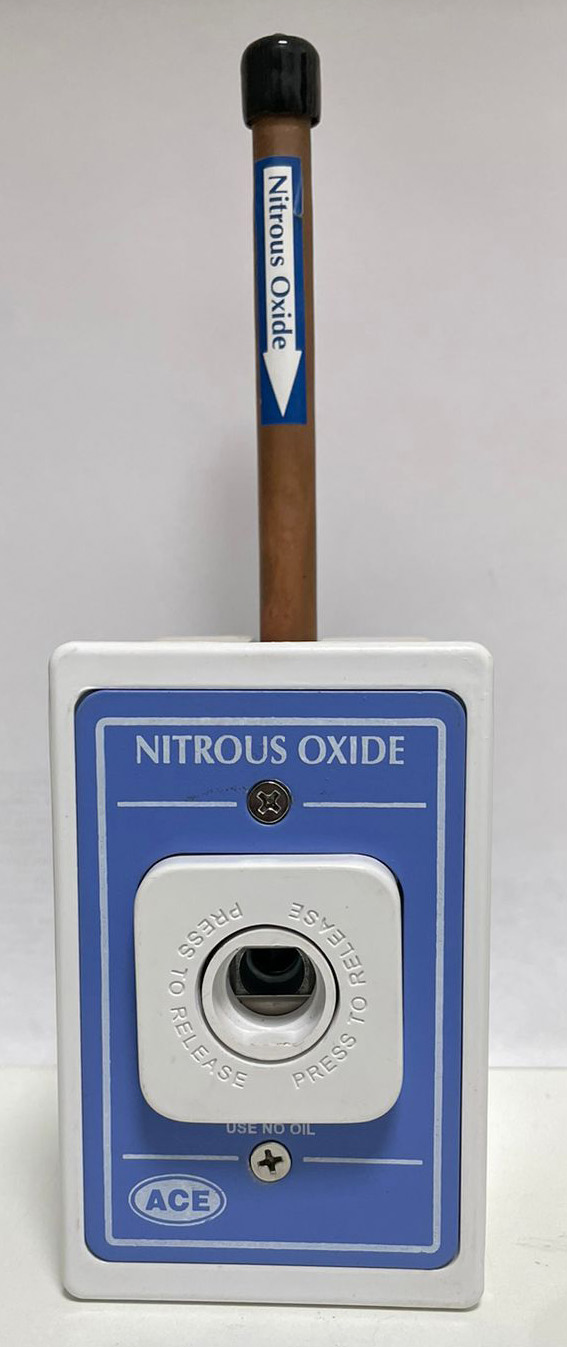

Nitrous Oxide AC 1351 AC 1352 AC 1353
Carbon Dioxide AC 1361 AC 1362 AC 1363
Working Pressure
  • 4-5 bar (400-500 kPa)
    [O2, Air-400, Air-800, N2O, CO2]
  • below -0.4 bar (-40 kPa)
    [Vac]

Max Inlet Pressure
  • 10 bar (1000 kPa)
    [O2, Air-400, Air-800, N2O, CO2]
  •  5 bar (500 kPa)
    [Vac]

Storage Temperature
  • -20ºC to 60ºC

Available base block
  • with a flared coupler for brazing
  • with hose connection

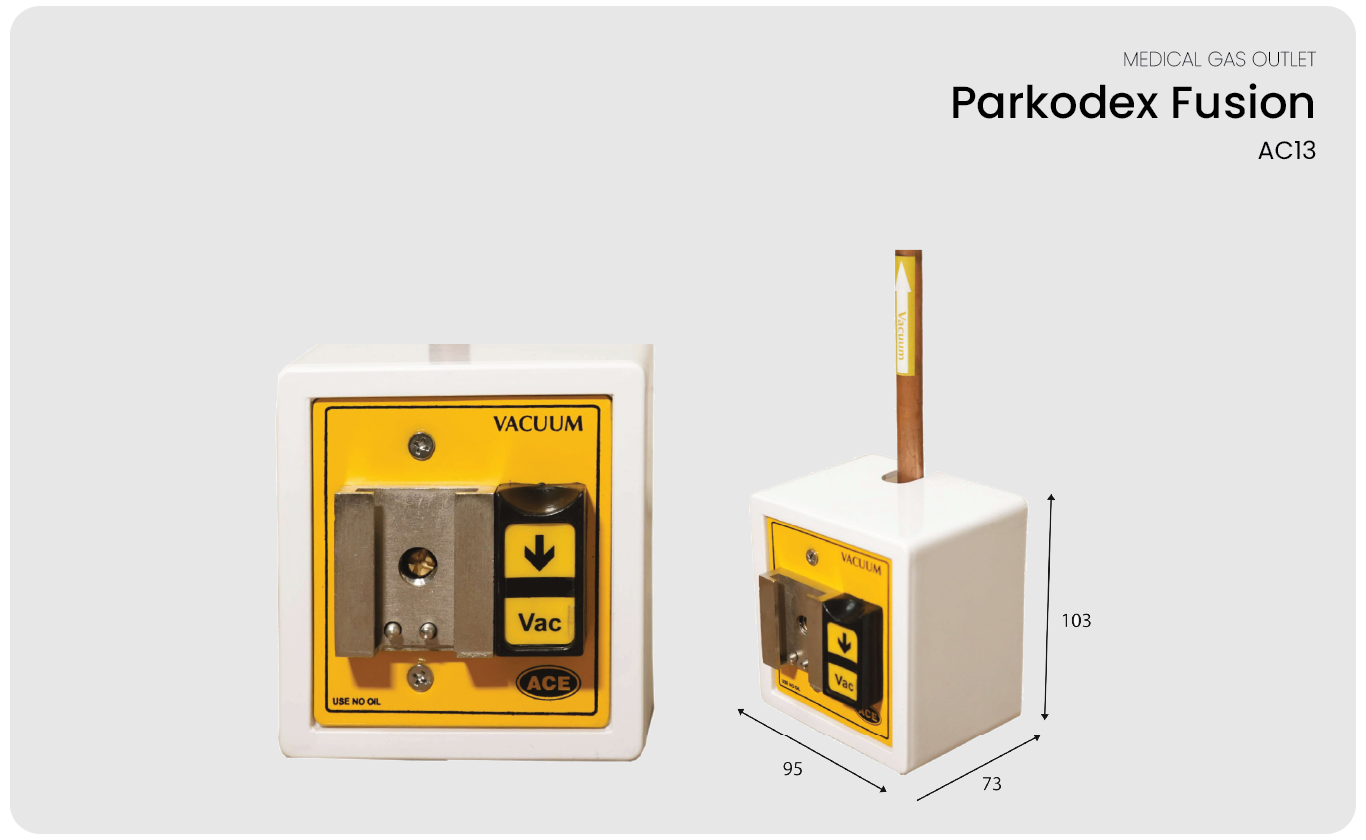

Parkodex Fusion dimensions
