British Standard Outlet

MEDICAL GAS OUTLETS
British Standard Gas Outlets



Precision-engineered to meet the rigorous demands of modern healthcare facilities. The connection between an outlet and the medical device uses an indexed outlet-to-device interface with non-interchangeable probes to avoid accidental cross-connections with a device that uses different gases.

Ensure long-lasting performance and safety in medical gas delivery for hospitals, clinics and critical care facilities. Every gas outlet is tested to ensure it is built and operating as per standard, with clear marking and color-coded for identification to provide easy access in critical moments.

Compliant with BS 5682:2015, ISO 9170-1:2016, and IS 17812-1:2022

<  Previous - Puritan Bennett Type |

|  Next - Parkodex Fusion  >

  • Secure Connection To guarantee uninterrupted patient care, connections are hermetically sealed to prevent leaks.
  • Easy to Identify ISO 32 colour-coded for quick identification, and marked as per ISO 7396-1:2016 for zero mix-ups.
  • Non-interchangeable Connections Smooth, simple action for reliable gas connections with diametrically-indexed probes as specified in BS 5682:2015.
  • Ease of Installation Flared end pipes or hose connections for easy installation and secure connections to the pipeline.
  • Choice of Materials For durability and contamination-free use, specific corrosion-resistant materials suitable for use with medical gases are used in the making of all our gas devices.
  • Pin-indexed Components Each component has gas-specific connections, so there is no chance of cross-connections during routine use or maintenance.

ACE gas outlets are engineered for utmost safety in medical environments, and are compatible with the following medical gases.

  • Oxygen
  • Vacuum
  • Medical air
  • Surgical air
  • Nitrous oxide
  • Carbon dioxide

Our outlets are available in three mounting options for flexible installation in hospital settings.

  • Wall-mounted
  • Bed Head Panel
  • OT and ICU Pendants


Product Codes
  Wall-mounted Panel-mounted Pendant-mounted

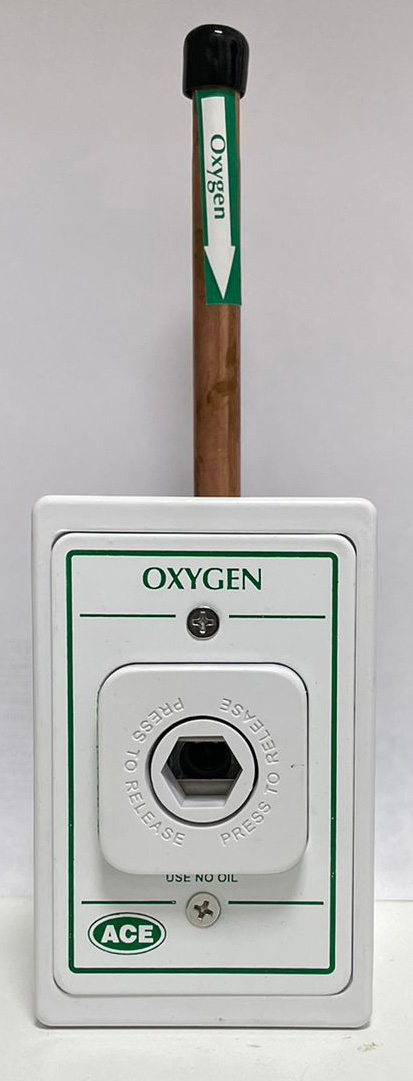

Oxygen AC 1211 AC 1212 AC 1213

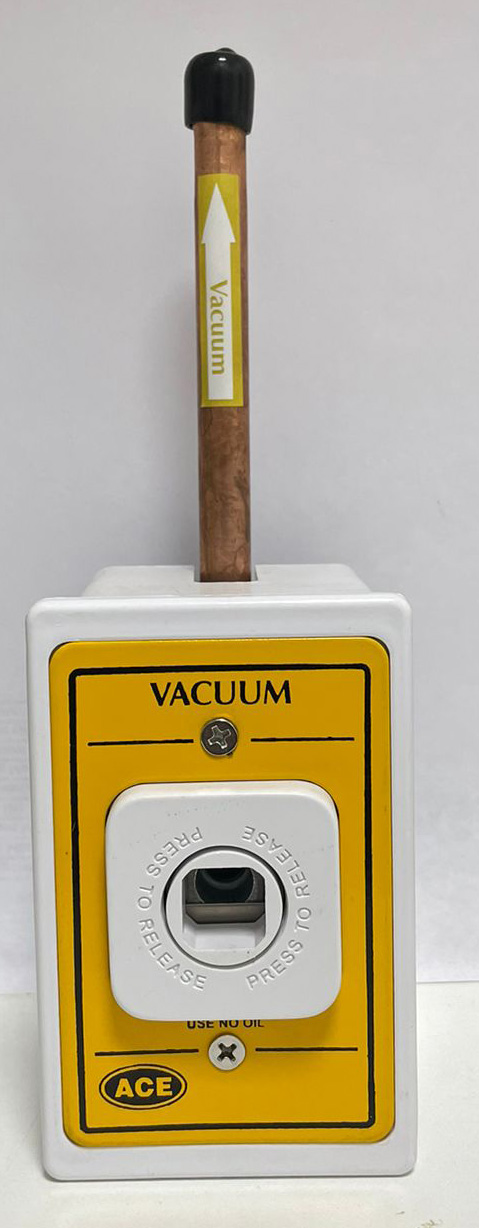

Vacuum AC 1221 AC 1222 AC 1223

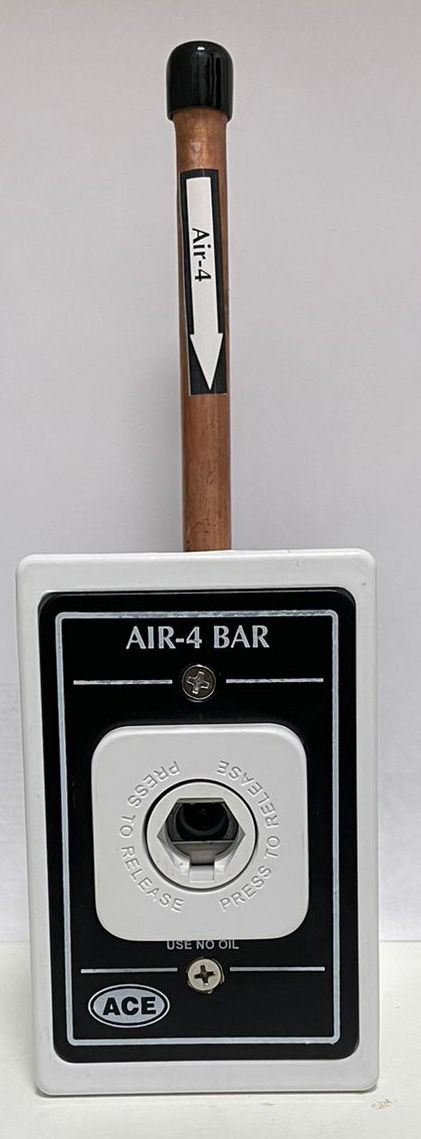

Air-4 Bar AC 1231 AC 1232 AC 1233

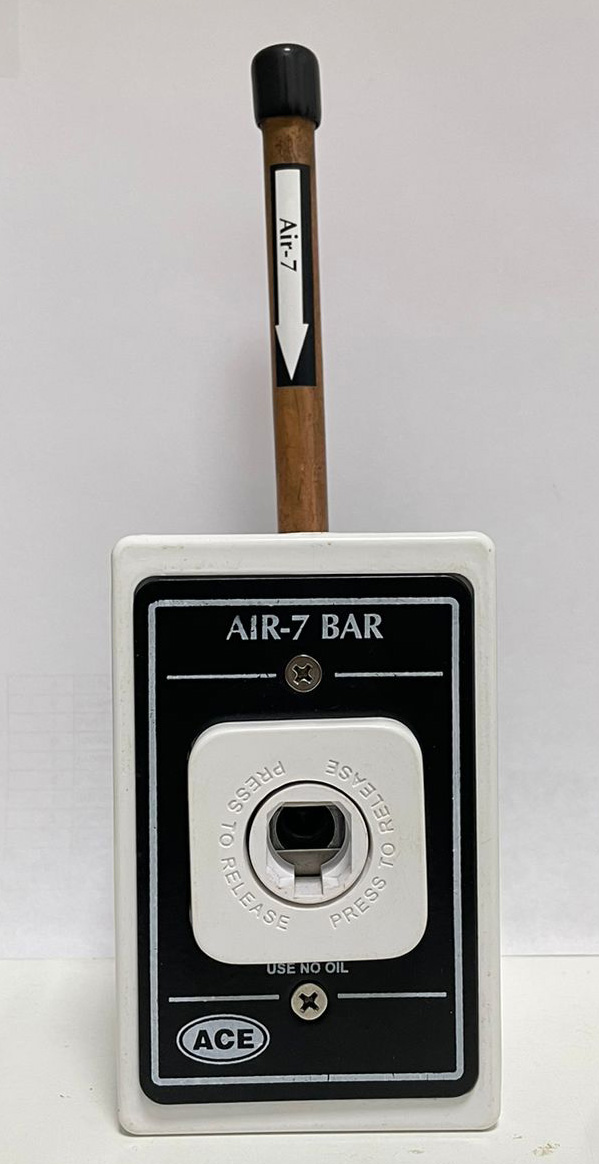

Air-7 Bar AC 1241 AC 1242 AC 1243

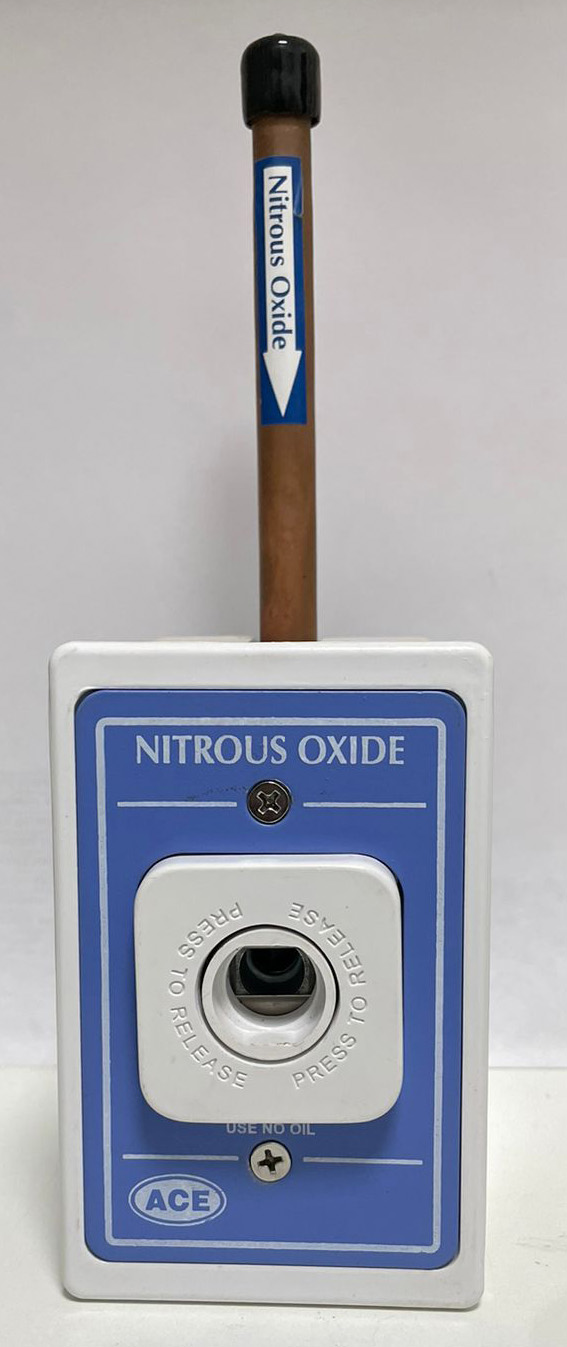

Nitrous Oxide AC 1251 AC 1252 AC 1253
Carbon Dioxide AC 1261 AC 1262 AC 1263
Working Pressure
  • 4-5 bar (400-500 kPa)
    [O2, Air400, Air800, N2O, CO2]
  • below -0.4 bar (-40 kPa)
    [Vac]

Max Inlet Pressure
  • 10 bar (1000 kPa)
    [O2, Air400, Air800, N2O, CO2]
  •  5 bar (500 kPa)
    [Vac]

Storage Temperature
  • -20ºC to 60ºC

Available base block
  • with flared coupler for brazing
  • with hose connection

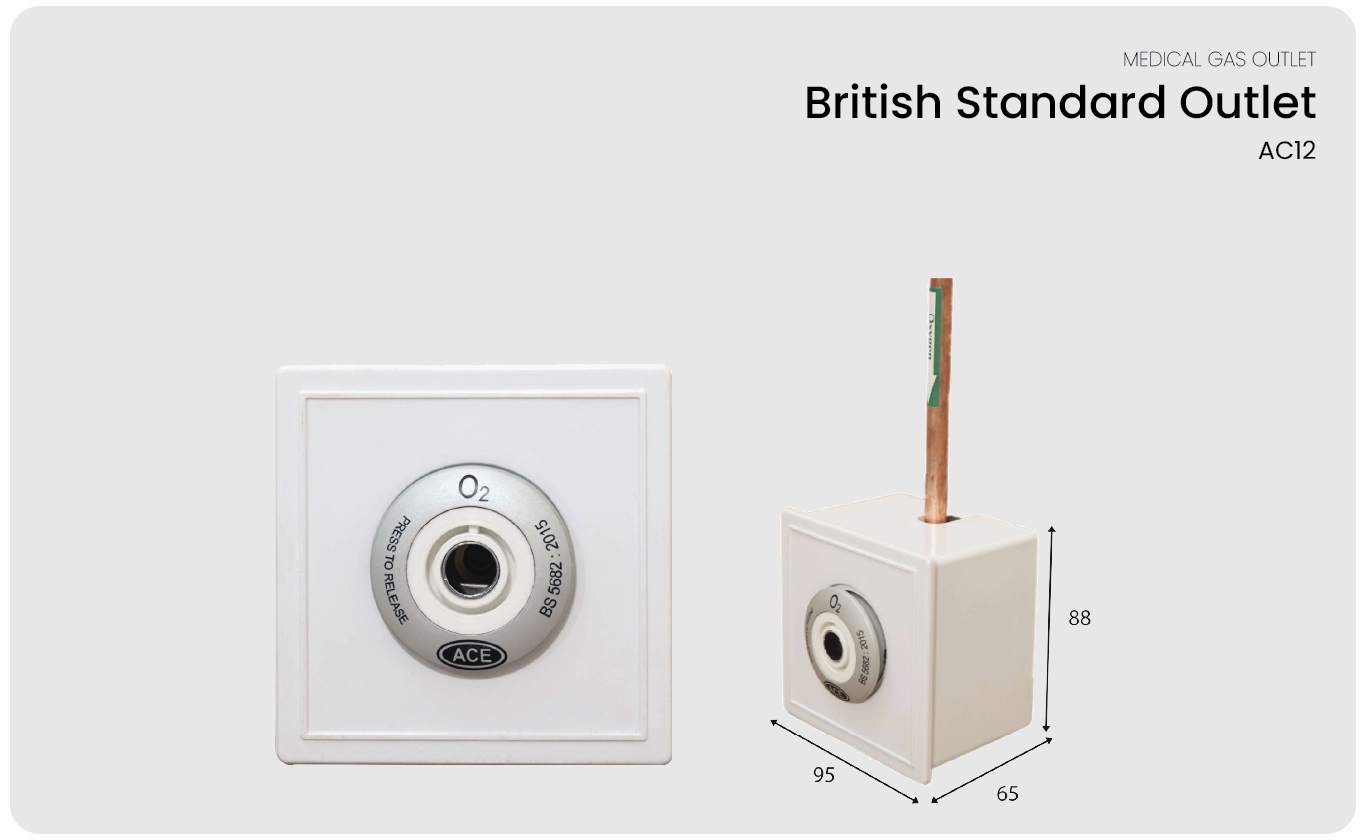

British Standard Outlet dimensions
British Standard gas outlets are designed and manufactured in line with the requirements of
  • ISO 9170-1:2016 / IS 17812-1:2022
  • ISO 7396-1:2016
  • HTM 02-01
Outlet-to-device interface has diametric indexing of probes as per
  • BS 5682:2015
The product is registered with the Central Drugs Standard Control Organization (CDSCO) under Reference Number:
  • AirCa-Gurga-HR/M/MD/017755
