Puritan Bennett Type

MEDICAL GAS OUTLETS

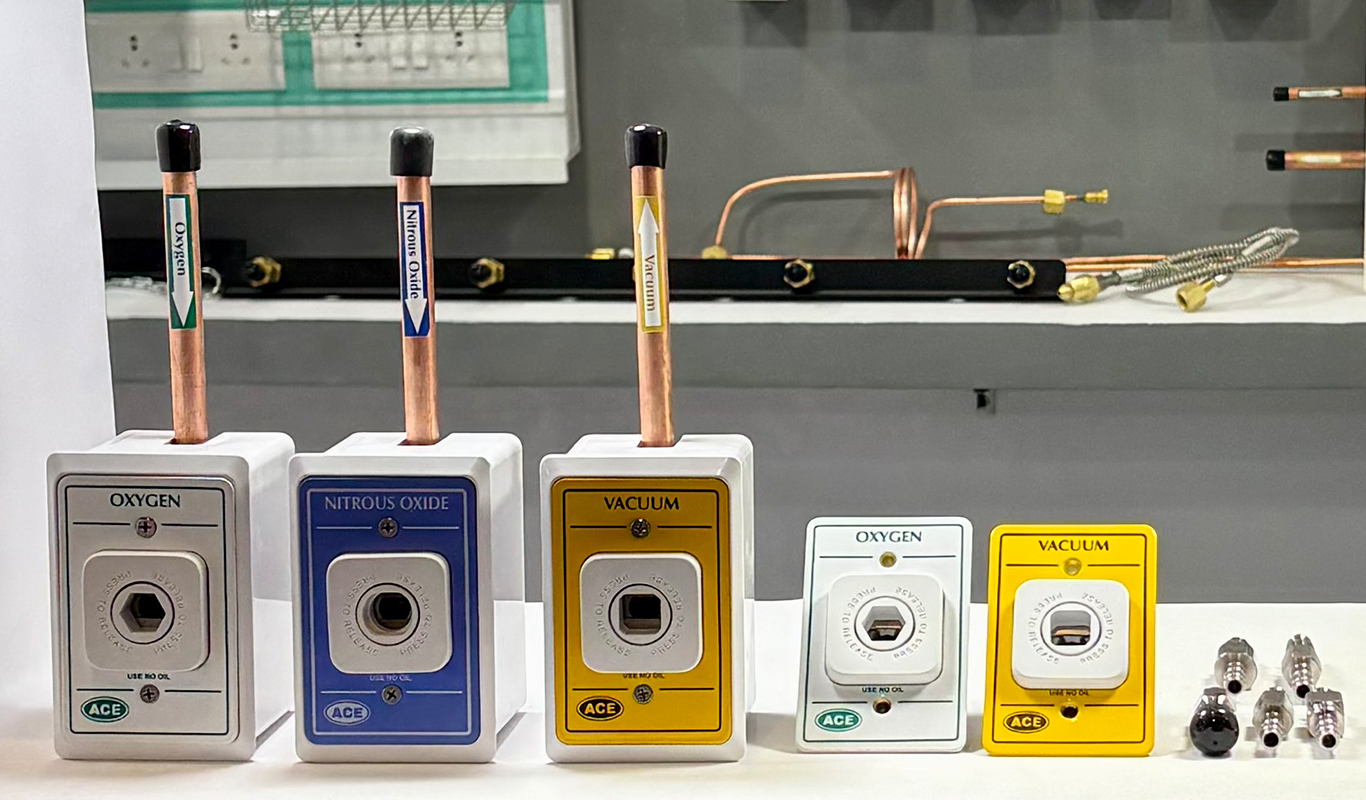

Puritan-Bennett Type Gas Outlets

Precision-engineered to meet the rigorous demands of modern healthcare facilities. The connection between an outlet and the medical device uses an indexed outlet-to-device interface with non-interchangeable probes to avoid accidental cross-connections with a device that uses different gases.

Ensure long-lasting performance and safety in medical gas delivery for hospitals, clinics and critical care facilities. Every gas outlet is tested to ensure it is built and operating as per standard, with clear marking and color-coded for identification to provide easy access in critical moments.

Compliant with ISO 9170-1:2016, IS 17812-1:2022

Secure Connection To guarantee uninterrupted patient care, connections are hermetically sealed to prevent leaks.
Easy to Identify ISO 32 colour-coded for quick identification, and marked as per ISO 7396-1:2016 for zero mix-ups.
Non-interchangeable Connections Smooth, simple action for reliable gas connections with indexed probes to prevent misconnections.
Ease of Installation Flared end pipes or hose connections for easy installation and secure connections to the pipeline.
Choice of Materials For durability and contamination-free use, specific corrosion-resistant materials suitable for use with medical gases are used in the making of all our gas devices.
Pin-indexed Components Each component has gas-specific connections, so there is no chance of cross-connections during routine use or maintenance.

ACE gas outlets are engineered for utmost safety in medical environments, and are compatible with the following medical gases.

Oxygen
Vacuum
Medical air
Surgical air
Nitrous oxide
Carbon dioxide

Our outlets are available in three mounting options for flexible installation in hospital settings.

Wall-mounted
Bed Head Panel
OT and ICU Pendants

Product Codes

	Wall-mounted	Panel-mounted	Pendant-mounted
Oxygen	AC 1111	AC 1112	AC 1113
Vacuum	AC 1121	AC 1122	AC 1123
Air-4	AC 1131	AC 1132	AC 1133
Air-7	AC 1141	AC 1142	AC 1143
Nitrous Oxide	AC 1151	AC 1152	AC 1153
Carbon Dioxide	AC 1161	AC 1162	AC 1163

Working Pressure

4-5 bar (400-500 kPa)
[O₂, Air400, Air800, N₂O, CO₂]
below -0.4 bar (-40 kPa)
[Vac]

Max Inlet Pressure

10 bar (1000 kPa)
[O₂, Air400, Air800, N₂O, CO₂]
5 bar (500 kPa)
[Vac]

Storage Temperature

-20ºC to 60ºC

Available base block

with flared coupler for brazing
with hose connection

Puritan Bennett gas outlets are designed and manufactured in line with the requirements of

ISO 9170-1:2016 / IS 17812-1:2022
ISO 7396-1:2016
HTM 02-01

This product is registered with the Central Drugs Standard Control Organization (CDSCO) under reference number:

AirCa-Gurga-HR/M/MD/017755
